Features
Technical overview and interfaces.
See what CY-2 carries, how it connects, and how the vehicle-side and ground-side units fit into a real deployment.
Overview
Technical overview.
Technical overview
CY-2 is a compact wireless data link for platforms that need video, telemetry, serial transport, and IP access in one system.
Interfaces

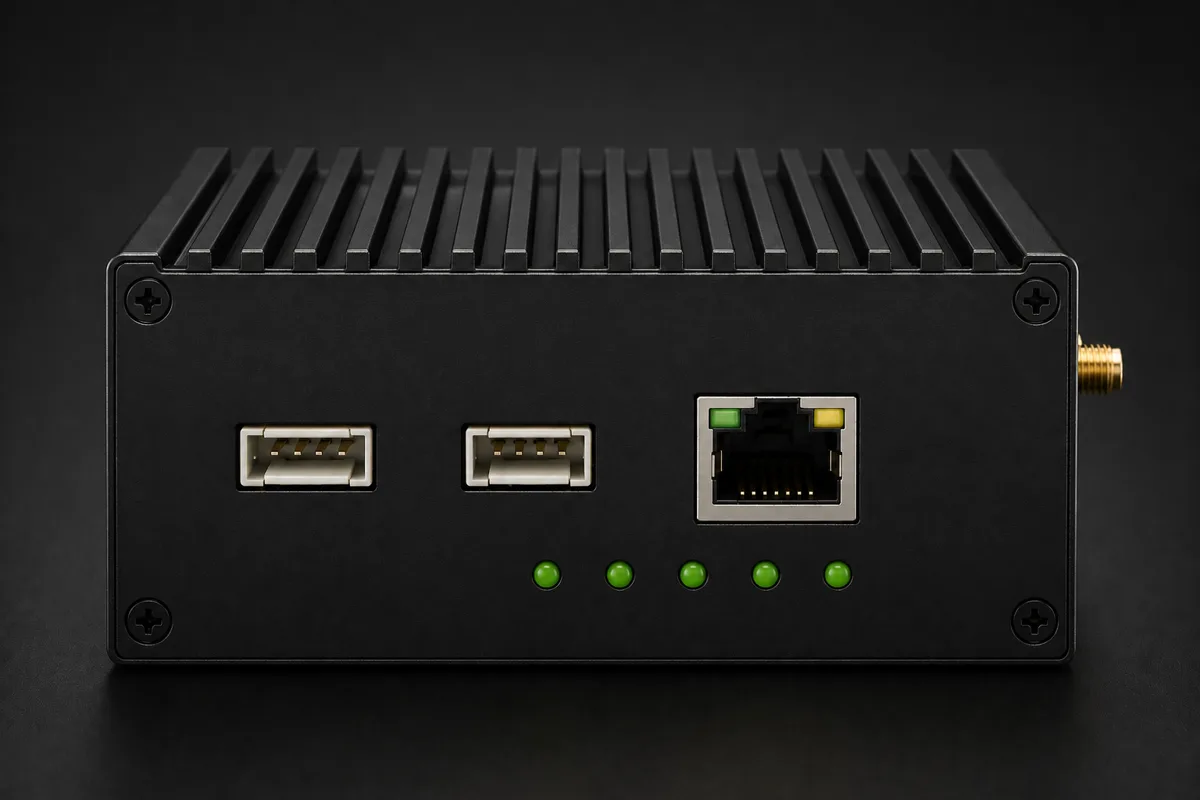

Ethernet, UART, and USB connect the radio to cameras, controllers, payload devices, and onboard compute.
Deployment model
One unit goes on the platform and one stays with the operator for monitoring, video access, and service-side connectivity.
Specifications
Specifications.
| Parameter | Specification |
|---|---|
| Radio band | 5 GHz, 5.15–5.85 GHz |
| Wireless technology | 802.11a/n/ac based digital wireless link |
| MIMO configuration | 2x2 MIMO / 2T2R |
| Channel bandwidth | 10 / 20 / 40 / 80 MHz |
| Peak PHY rate | Up to 867 Mbps |
| Practical data use | Compressed video + telemetry + UART + IP traffic over a single link |
| Power input | 5 V DC nominal |
| Radio current | Up to 1.8 A |
| Radio power draw | Up to approx. 9 W for radio section |

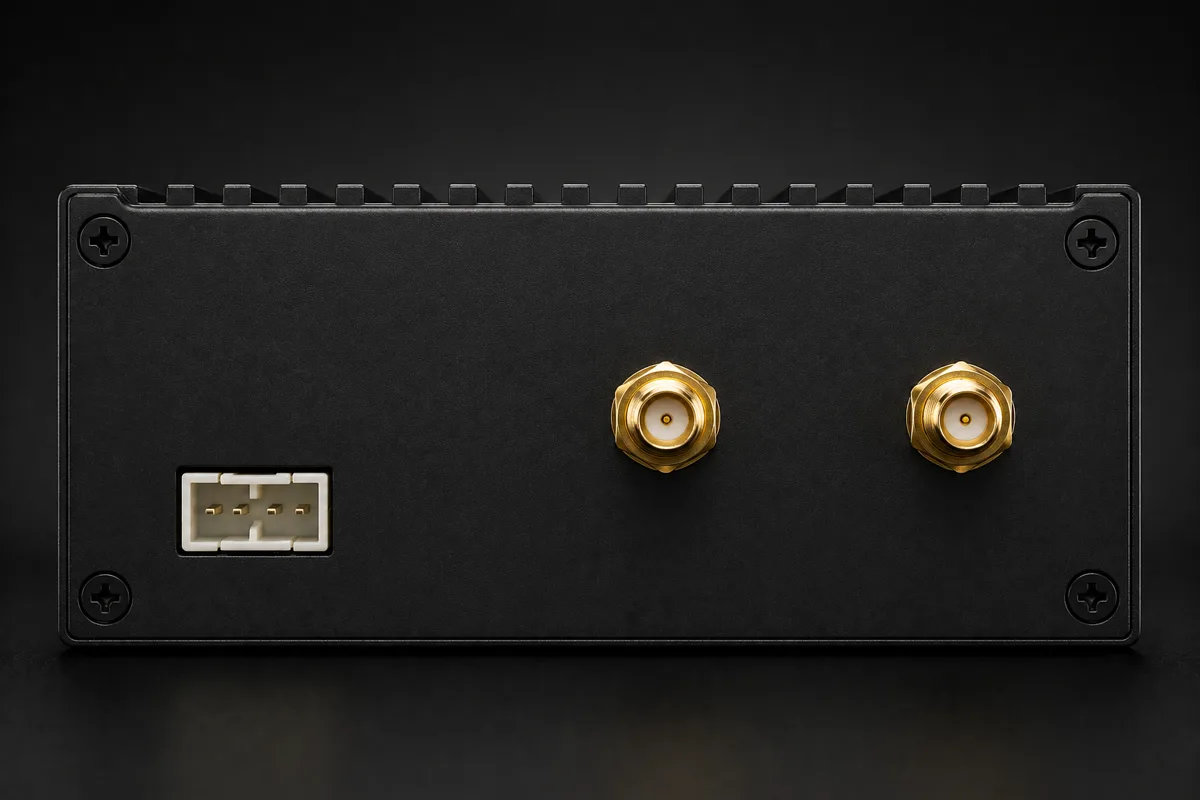

| Antenna ports | 2 × SMA external antenna connectors |
| Antenna mode | Dual-antenna 2x2 operation |
| Operating temperature | -20°C to +70°C |
| Operating humidity | 10-95% RH, non-condensing |
| Interfaces | Ethernet, USB, UART, power, dual antenna |
| Video support | IP camera, USB camera workflow, RTSP/UDP/TCP video transport |
| Telemetry support | UART telemetry and IP telemetry workflows |
| IP tunnel | Transparent IP tunnel / Ethernet bridge-style operation |
| UART configuration | Configurable baud rate and serial settings |
| Default topology | Point-to-point air-ground or vehicle-ground link |
Functions
Video, telemetry, serial, and IP transport.
Video transport
Carry camera video from the platform to the operator side as part of the same link used for the rest of the system.
Telemetry bridge
Move vehicle state, autopilot telemetry, and mission data between the platform and the ground side.
UART serial transport
Support serial workflows for embedded devices, payload logic, autopilots, and custom modules.
Ethernet and IP tunnel
Provide ground-side access to dashboards, onboard compute, IP cameras, and diagnostics.
USB payload interface
Connect host-side or camera-side USB workflows where the platform or operator setup depends on them.
Deployment
Vehicle and ground unit deployment.
One unit installs on the platform. One stays with the operator for monitoring, video access, and service-side connectivity.
Interfaces
Ethernet, UART, and USB interfaces.
Interface set
- Ethernet for payload devices, IP cameras, and onboard computers
- UART for telemetry and serial payload communication
- USB for camera or host-side integration
- Web UI for configuration and monitoring
Typical use
- Air-ground video and telemetry
- Payload control and diagnostics
- Ground station access to onboard IP devices
- Evaluation and field testing
Monitoring
Local web monitoring.
Local web monitoring
Review link state, packet activity, and service availability from the local web interface.
Operational context
Use service and health indicators to validate the system faster during setup and field checks.

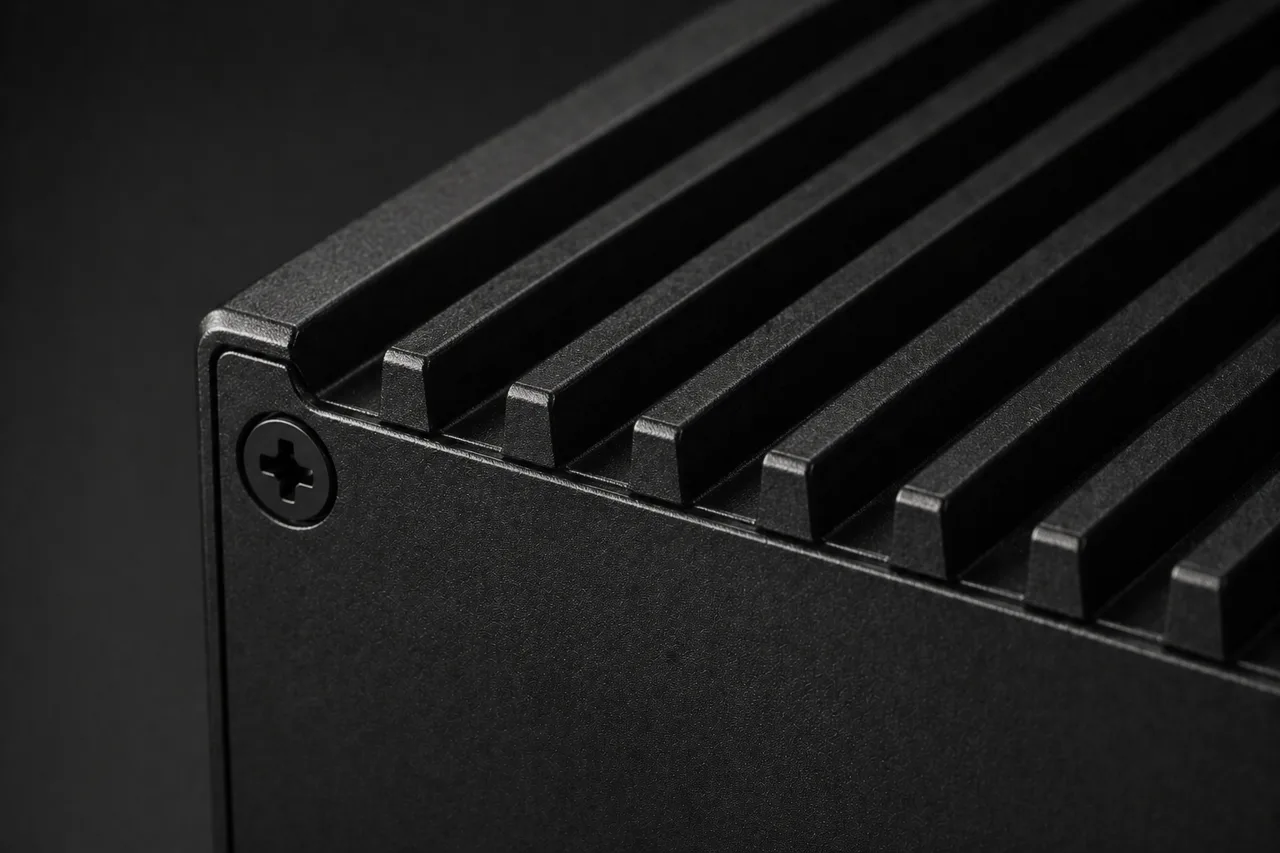

Packaging
Compact enclosure, usable connector layout.
Connector access is treated as part of the product so teams can install, service, and test the system without awkward packaging compromises.
